Internet Phone, Everfree/p2p





EverFree/p2p is a PC-based internet phone, and makes services without any support of service provider. Most of the existing internet phone services make phone calls available with the support of internet phone service companies, and have the disadvantage that users have to pay registration fee and monthly usage fee or fixed monthly charge. Also, due to severe competition, some companies are withdrawing from the market, in which case, equipments like terminals that users purchased for high price in the beginning become useless and there is no guarantee that users can get repaid their registration fee.

However, the initial purchase cost of EverFree/p2p is lower than other similar products. Once equipments are purchased, users need not expend additional costs. Also, since there are not many occasions users have to rely on the manufacturer, users can use it without worrying about manufacturer's bankrupt. EverFree/p2p users who are on a trip abroad may be free from telephone fee, because it is possible to make calls between EverFree/p2p and any PC in the world. It is very convenient to dial with remote dialing, two.

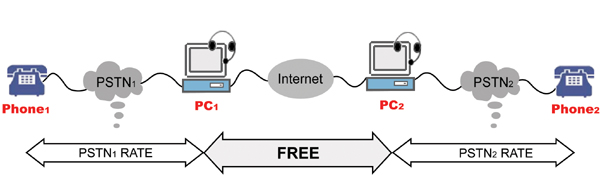

◑ System Composition
   The system composition of EverFree/p2p is shown in the figure below, and it's point comes from p2p.
System Composition

PC-to-PC PC-to-Phone Phone-to-PC Phone-to-Phone
Conversation

• Between PC1 and
PC2

• Between any PC
and PC1 or PC2

• PC1 to Phone2
• PC2 to Phone1

• Between any PC and
Phone1 or Phone2

• Phone1 to PC2
• Phone2 to PC1

• Between Phone1 or
Phone2 and any PC

• Between Phone1
and Phone2

Rate

• Free

• PSTN2 rate
• PSTN1 rate

• PSTN1 rate
• PSTN2 rate

• PSTN1 rate and
PSTN2 rate


◑ Product Image

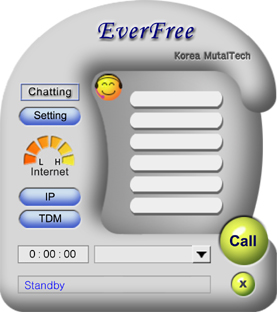

< Softphone >
< Softphone >

< Gateway >
< Gateway >


  PC Environment

Basic Requirments
CPU

  Pentium 166MHz or above

Memory

  64MB or above

O S

  Windows

Internet

  Connected

Sound

  Speaker & microphone



IP Environment

There are pseudo internets which can not support all internet protocols. Those pseudo internets mostly use private IP in both sides, or sometimes use public IP with limited functions.
In operating EverFree/p2p, IP plays a very important role and EverFree/p2p might not operate properly depending on combinations of IPs. EverFree/p2p operates well in all the regular internets. Because EverFree/p2p might not operate properly in case of pseudo internet, it is recommended to use regular internets when users use EverFree/p2p.



◑ Service Type

Because voice data are transmitted through the internet between PCs, calls between PCs are free of charge. In case of the phone, it is connected through the local PSTN. Telephone fee is dependent on the fee system of the local PSTN provider.

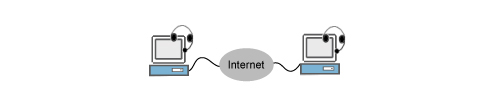

PC-to-PC Call

This call is made from the sending(calling) PC to the receiving PC. It is free of charge.


             PC-to-PC call

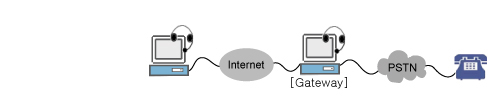

PC-to-Phone Call

This call is made from PC to normal phones(including cellular phones). Telephone charge is paid by the customer who installed gateway.


          PC-to-Phone Call

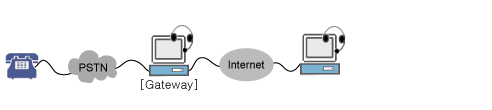

Phone-to-PC Call

In this mode, a call is made from a phone to the other party's PC. Gateway must be installed on calling side's PC, and the telephone fee is charged to the customer who makes the call.


            Phone-to-PC Call

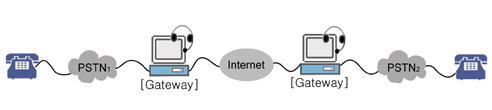

Phone-to-Phone Call

This applies to a call made from a phone to a phone. PCs on both sides must have gateways installed. Telephone fee is charged to the customer who makes the call and who has installed the gateway.


            Phone-to-Phone Call


Spot Call

- Any PC can make calls all over the world through instant downloading
- Input the other's IP address on URL input box of web browser and click, then program is downloaded automatically and starts to make conversation
- It is possible to use this service except Phone-to-Phone call.


◑ Application Example

EverFree/p2p users

- Who may go a trip abroad frequently

- Between parents and children studying abroad

- Between head office and branches
- Between friends
- Between member manager and members
- Between business man and international clients



◑ Product Model

There are three kinds of product models in EverFree/p2p, and possible service type is dependent on the each model. Relationship between model and product composition, service type, and rate is shown in the following table.


Model Product Composition Service Type Rate
Deluxe

• Program: Download

• USB Gateway: 2
• RJ11 6P2C Phone line: 2

• USB cable A-B: 2

• Electronic Manual

• PC-to-PC

• PC-to-Phone

• Phone-to-PC

• Phone-to-Phone

• Spot Call

• Between PCs: Free
• Between Phone and PC
: PSTN Rate

Standard

• Program: Download

• USB Gateway: 1
• RJ11 6P2C Phone line: 1

• USB cable A-B: 1

• Electronic Manual

• PC-to-PC

• PC-to-Phone

• Phone-to-PC

• Spot Call

• Between PCs: Free
• Between Phone and PC
: PSTN Rate

Economy

• Program: Download

• Electronic Manual

• PC-to-PC

• Spot Call

• Free


◑ Remote Dialing

- Because the method of phone number input is remote dialing, it is not necessary to input further ID number.

- Type in phone number of the area where the remote customer is living.

   Ex) Area where phone network subscriber customer is living: Daejeon

       Daejeon area: 825-2535(input digit only)

       Area other then Daejeon: area code-825-2535


◑ Voice Quality

- The voice quality is good and almost same as the regular phone.
- If the internet speed is more than 20Kbps, it is good and time delay is negligible, too


◑ Manual Downloading

- If you want to know about EverFree/p2p in detail, please download the electronic manual.

- The electronic manual is available to read as Acrobat Reader.
